Aluminium Composite Mounting Sections
In addition to being able to offer decoiled J57s UP and 1050 for cladding and facades, thyssenkrupp Materials (UK) also carry a range of extrusions designed to mount aluminium composite panels. These sections include complete panel mounting kits and are available from stock or, can be supplied in bespoke lengths.

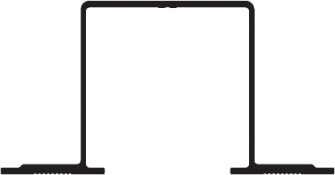

Hat Section
Hat Section
6 meter vertical rail
1.070kg / mtr
Section: 35953
tk reference: 202991

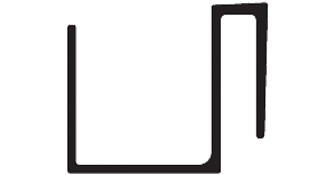

Section for Tray Panels
Section for Tray Panels
6 metre 'female' section
0.634kg / mtr
Section: 37774
tk reference: 203542

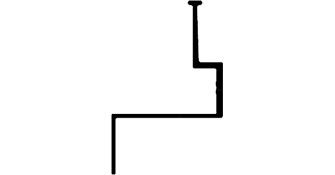

Section for Tray Panels
Section for Tray Panels
6 metre 'Male' section
0.667kg / mtr
Section: 37773
tk reference: 206479

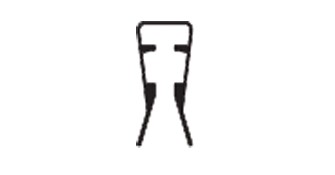

Clips
Clips
Plastic clip
Section: MO2061
tk reference: 202806

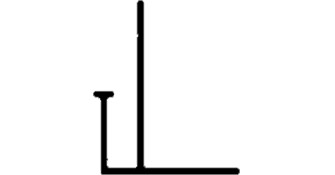

Base Section
Base Section
6 metre base profile
0.558kg / mtr
Section: 41489
tk reference: 229539

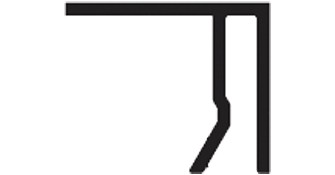

Window Connecting Section
Window Connecting Section
6 metre window connecting profile
0.375kg / mtr
Section: 38464
tk reference: 236910

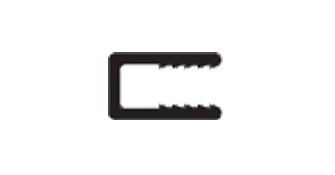

Edge Section
Edge Section
6 metre edge profile
0.140kg / mtr
Section: 24494
tk reference: 226952
Cover Section
Cover Section
6 metre cover profile
0.335kg / mtr
Section: 32651
tk reference: 218652
Sections for Tray Panels
Sections for Tray Panels
6 meter 'female' section
0.634kg / mtr
Section: 37774
tk reference: 203542
Sections for Tray Panels
Sections for Tray Panels
6 meter 'male' section
0.667kg / mtr
Section: 37773
tk reference: 206479
